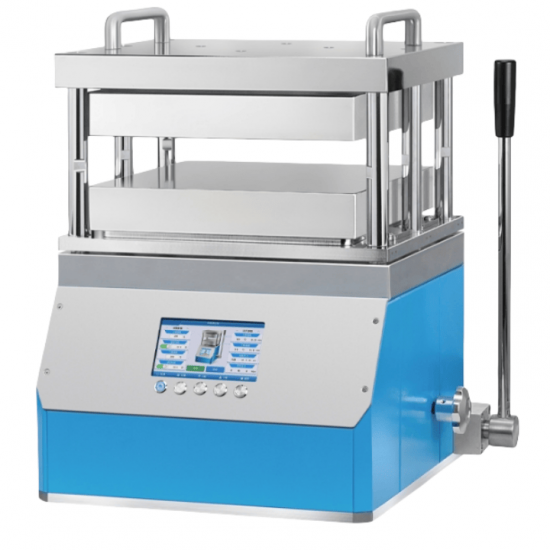

15T 300C Small Tonnage Integrated Manual Hot Press with 400X400mm Double Heating Plate

15T 300C Small Tonnage Integrated Manual Hot Press with 400X400mm Double Heating Plate

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-PC-600F
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

15T 300C Small Tonnage Integrated Manual Hot Press with 400X400mm Double Heating Plate




Mold operation diagram



Operation interface (Manual mode)



Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Return to zero button:Calibrate the pressure to zero.

Upper plate button: Heat the upper heating plate.

Lower plate button: Heat the lower heating plate.

Timing switch: The timing function can be turned on and off.



Operation interface (Automatic mode)



Start button: It can be pressurized according to the multi-stage pressurization program.

Stop button:Press the stop button to stop the heating process.

List/Curve: The current display state can be switched between list and curve

Setting interface



Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"


Setting interface



Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen



Operation procedure







Technical parameter

Instrument mode!

PC-600F

Pressure Range

0-15.0 tons

Piston diameter

Chrome plated cylinder Φ95mm(d)

Main overall structure

Equipment without sealed connections toreduce oil leakage points

Mold heating temperature

Room temperature -300.0

Holdingtime

1 second~ seconds

Precision

0.1℃

Insulation method

Imported heat shield

Cooling method

Quick cooling with water cooling [optional water cooling machine]

Mold size

400X400mm(MXN) double heating plates

Workspace

400x400x70 mm

Dimensions

550x520x460 mm(L×W×H)

Power supply

5000 W(220V/110V can be customized)

Weight

380 Kg

Dimensional diagram of powder tablet press



Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
